Carli Ford Super Duty 05-16 Pintop 2.5 (2.5" Lift) Suspension System

This system was developed for outstanding on-road and highway performance while offering King shock with Carli's custom pistons and valve profile. Off road performance takes a huge step up, while maintaining Carli's signature street ride. Your truck will sit higher and as a result have more wheel travel.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

COMPONENTS

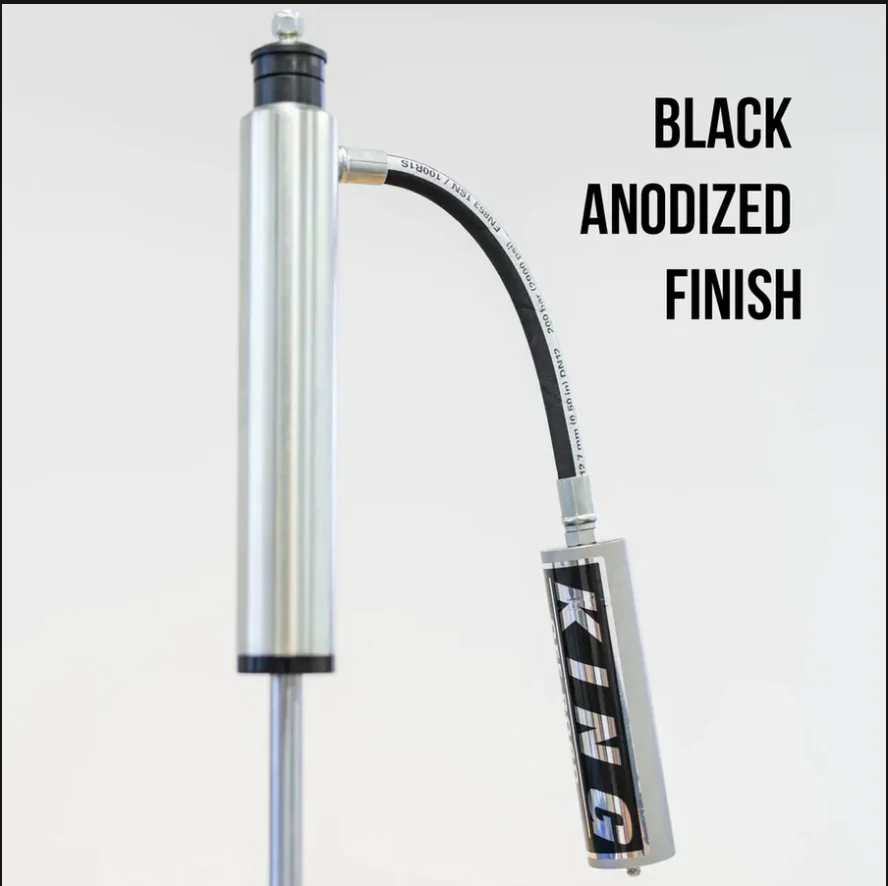

-King Pintop 2.5" Remote Reservoir Shocks
-King Piggy Back 2.5" Remote Reservoir Shocks
-Carli Linear-Rate Coil Springs
-Adjustable Track Bar
-6 Leaf Progressive Add-A-Pack
-Billet Aluminum Front Bump Drops
-Stainless Braided Brake Lines

FEATURES

-17-4 Stainless Steel Shafts
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter street feel
-Increased Suspension Response Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM
-No reduction of capability

ALTERED VEHICLE CHARACTERISTICS

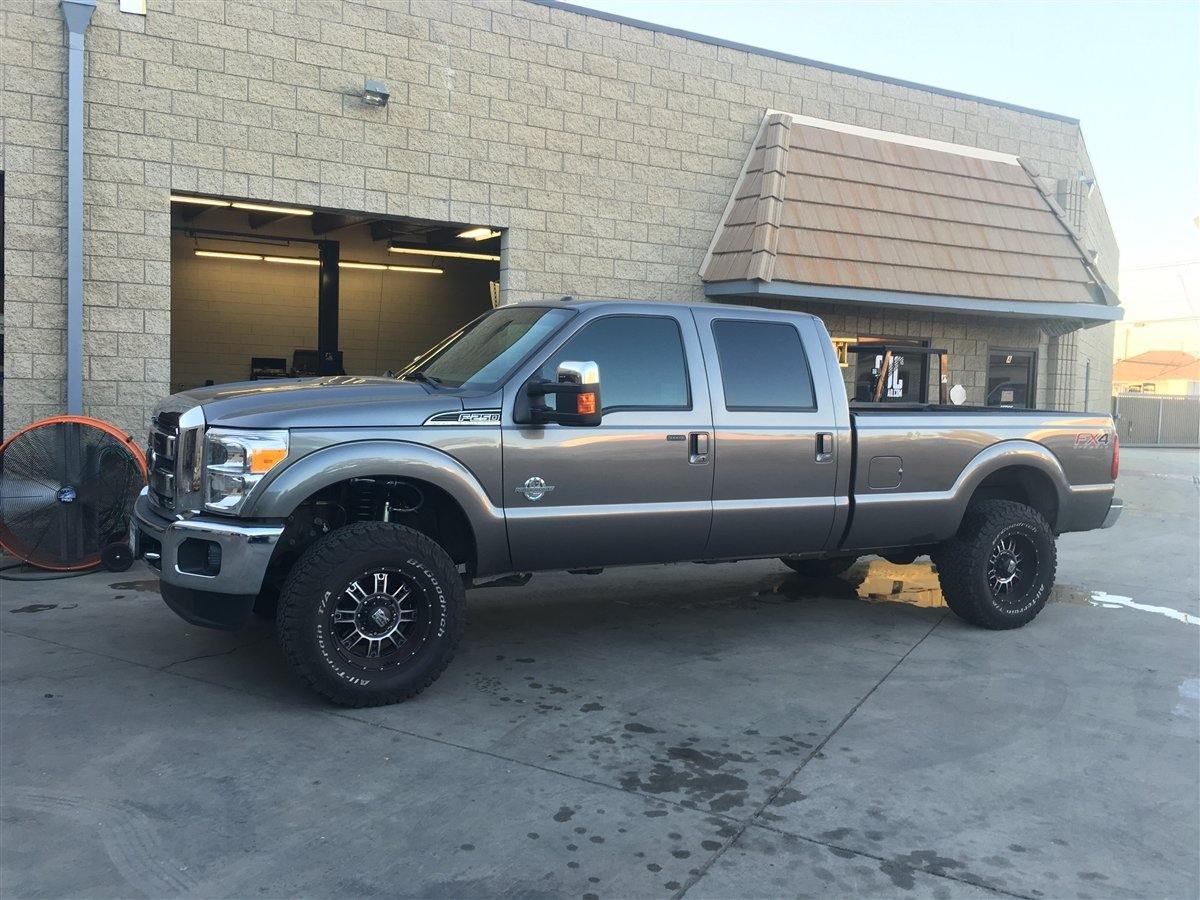

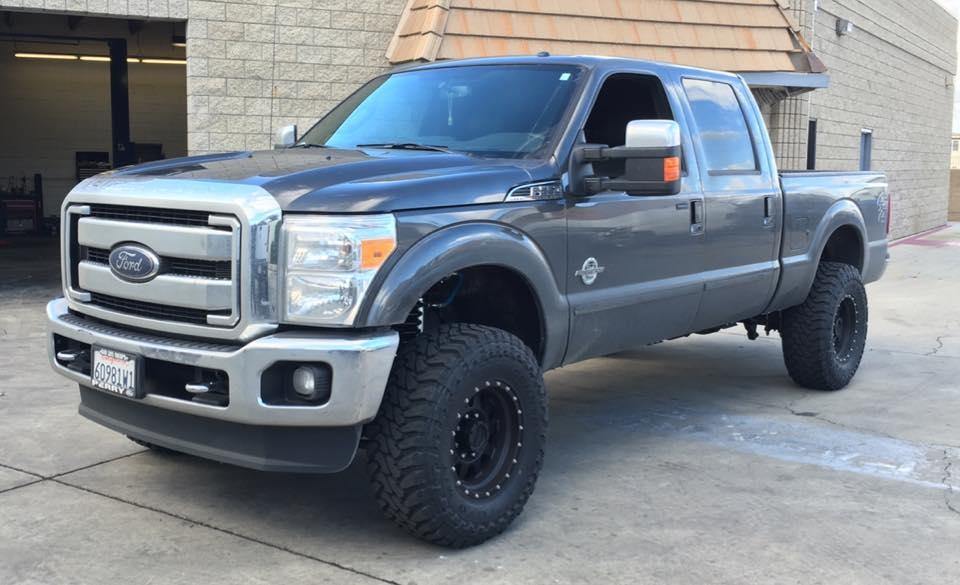

-Level 2.5" of Lift on the Front
-F250: 2" of Rear Lift
-F350: 1" of Rear Lift
-Vehicle is "Leveled"
-9" of Front Wheel Travel
-13" of Rear Wheel Travel

*F350's will require the factory F250 rear block to obtain a level stance if using the standard included rear add-a-pack. F250 blocks are not necessary if full progressive leaf springs are chosen above. F250 rear blocks are available in the options above.

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-FLVL-PT25-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-PT25-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-PT25-05

Front Lift	Rear Lift	Front Travel	Rear Travel	Shock Diameter	Tire Fitment
2.5″	0-2″	9″	13″	2.5″	35″ x 12.5″
