Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension System

Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension System

Our Ford Suspension system brings dramatic improvements to the every day street ride, and capability to handle heavy off road use. At the heart of our Super Duty Coil Over Suspension System lies a KING shock package which delivers impeccable performance and reliability. This system gives 2.5" of lift with 9 inches of wheel travel in the front and 12 inches of wheel travel in the rear. The progressive full springs custom built by Deaver will ensure ride quality, travel, and performance are unmatched. The bypass mount is already built into the coil over mount, making your custom King Bypass Shocks an easy bolt-on affair.
Ā
This system fitsĀ Ford F-250 and Ford F-350Ā 4x4 trucks fromĀ 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.


COMPONENTS

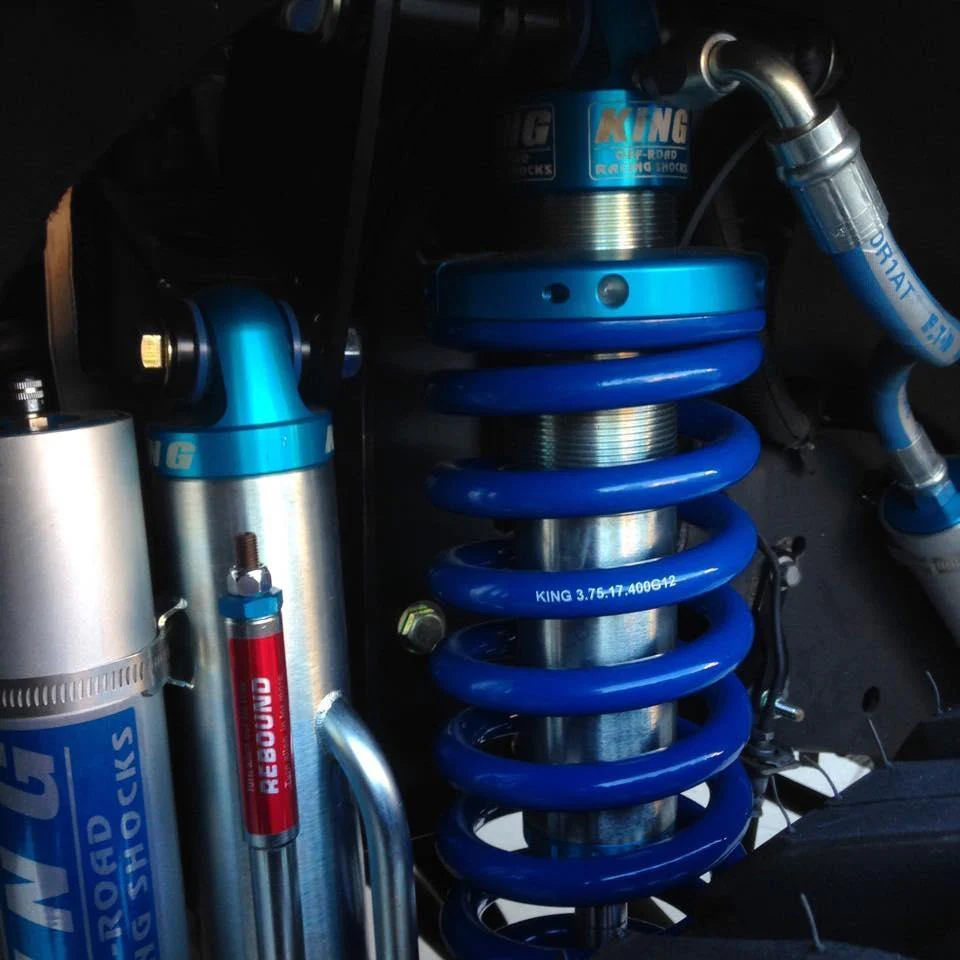

-King 2.5"x8" Custom Front Coilover Shocks
-King 2.5"x12" Custom Rear 3-Tube Bypass Shocks
-King 2.5"x8" Custom Front 2-Tube Bypass Shocks
-Coil Over Mounting Kit
-Adjustable Track Bar
-Billet Aluminum Front Bump Drops
-Stainless Braided Brake Lines

FEATURES

-17-4 Stainless Steel Shafts
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter street feel
-Increased Suspension Response Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM
-No reduction of capability

ALTERED VEHICLE CHARACTERISTICS

-Level 2.5" of Lift on the Front
-1 Inch of Lift in Rear
-Vehicle is "Leveled"

WHEEL TRAVEL

-8" of Front Wheel Travel
-13" of Rear Wheel Travel

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-FLVL-CO25-BYP-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-CO25-BYP-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-CO25-BYP-05

Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
2.5ā€³-3.5ā€³ 0-2ā€³ 8.0ā€³ 13ā€³ 2.5ā€³ 35ā€³ x 12.5ā€³



Select Application
From $2,686.20

Original: $8,954.00

-70%
Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension Systemā€”

$8,954.00

$2,686.20
