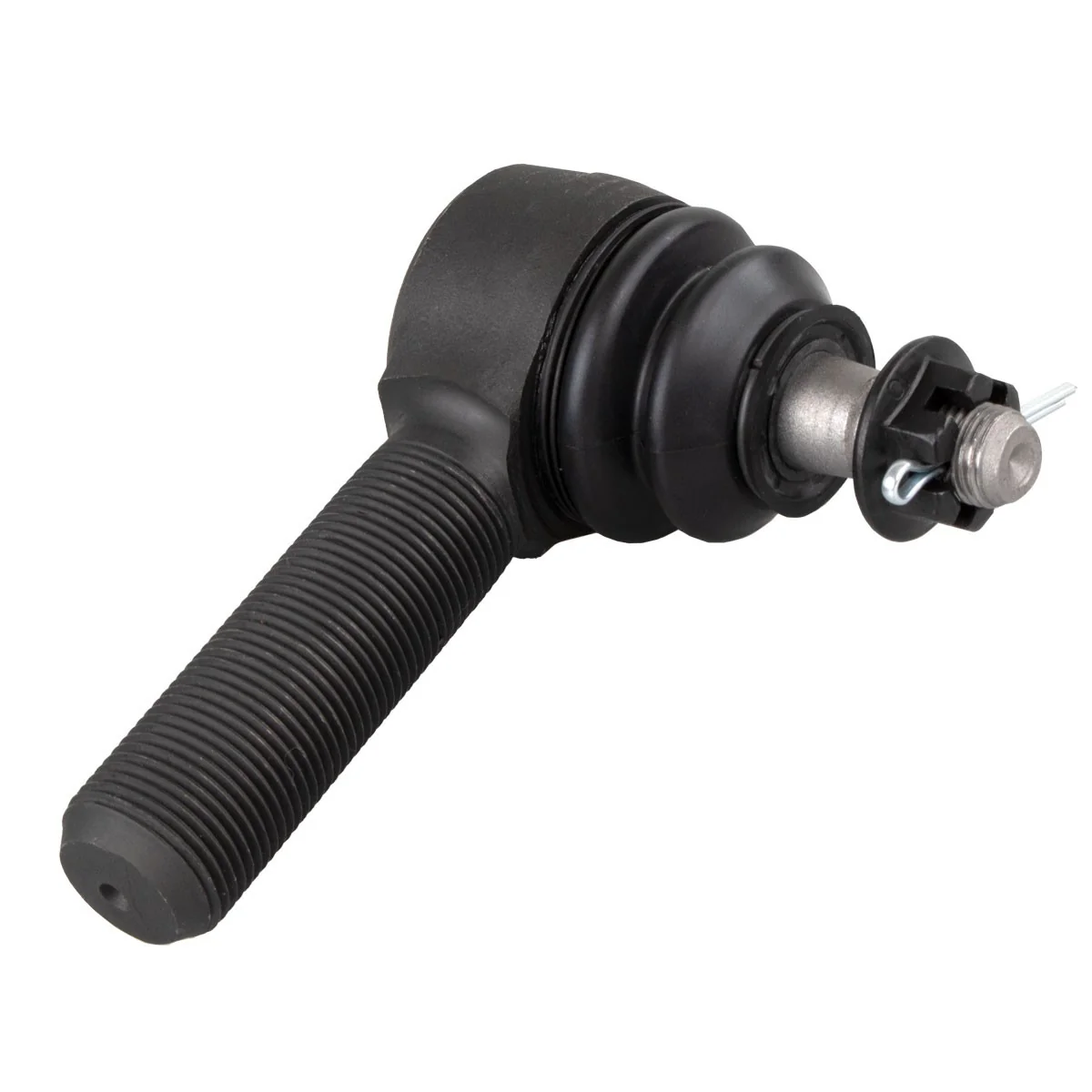

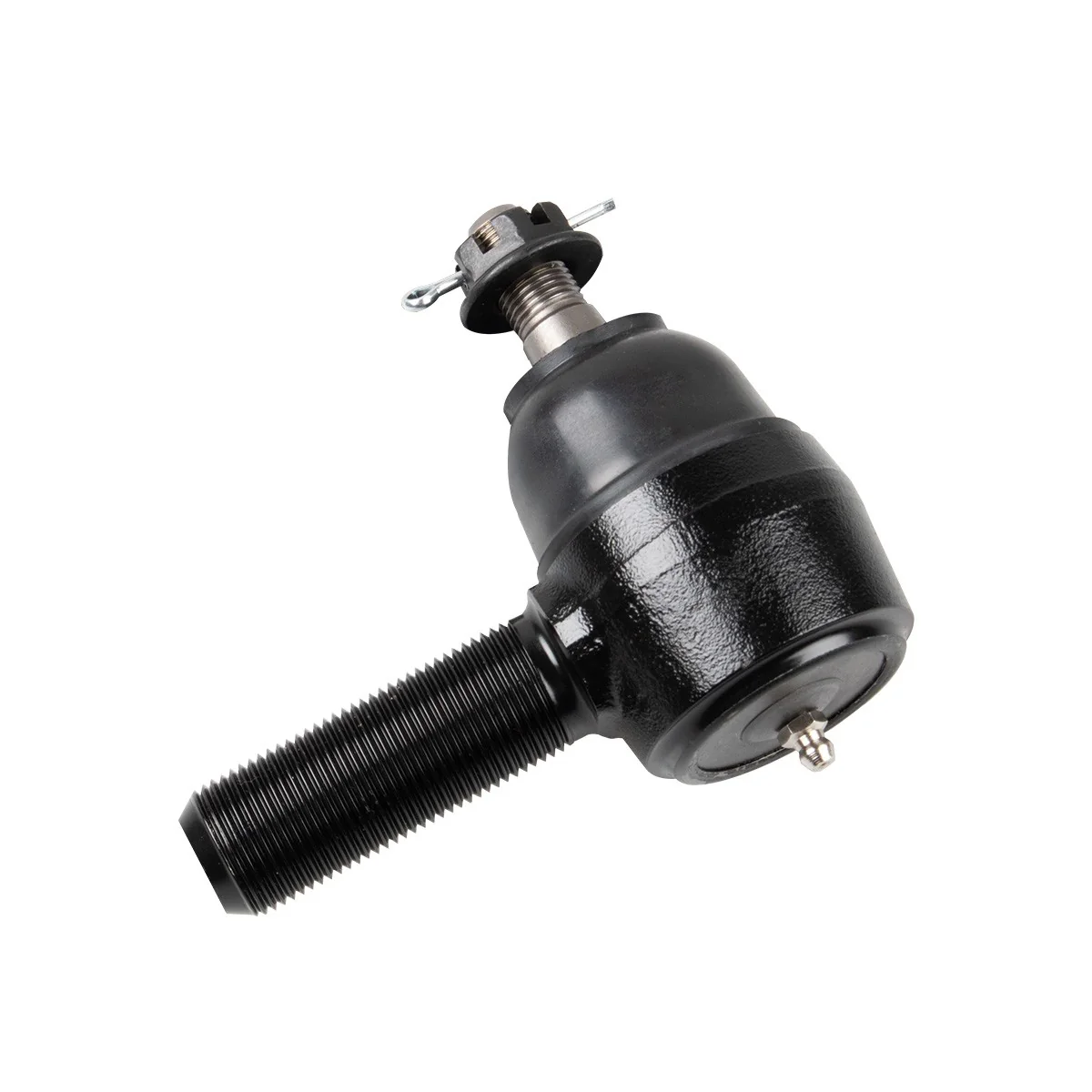

Synergy Dodge Heavy Duty Metal-on-Metal Tie Rod Ends

These tie rod ends allow you rebuild and service your Synergy HD Steering kit quickly and easily. If you have any questions about which part numbers you need, feel free to contact us for help.

These joints are NOT compatible with factory linkage or ANY other brand of steering.

Part #	Description	Thread	Taper	Style
4133-L	HD TIE ROD END, DODGE DRAGLINK	1-14 Left Hand UNF Thread	1:8 TAPER (7.125 DEG INCL ANGLE)	Standard
4134-L	HD TIE ROD END, DODGE TIE ROD	1-14 Left Hand UNF Thread	1:6 TAPER (9.5 DEG INCL ANGLE)	Standard
4136-L	HD TIE ROD END, DODGE TIE ROD	1-14 Left Hand UNF Thread	1:8 TAPER (7.125 DEG INCL ANGLE)	Standard
4138-L	HD TIE ROD END, DODGE TIE ROD	1 1/4-12 Left Hand UNF Thread	1:6 TAPER (9.52 DEG INCL ANGLE)	Standard
4160-L	HD TIE ROD END, DODGE DRAG LINK	1-14 Left Hand UNF Thread	1:8 TAPER (7.155 DEG INCL ANGLE)	Single Plane
4167-L	HD TIE ROD END, DODGE TIE ROD	1-14 Left Hand UNF Thread	1:6 TAPER (9.52 DEG INCL ANGLE)	Single Plane
4168-L	HD TIE ROD END, DODGE TIE ROD	1 1/4-12 Left Hand UNF Thread	1:6 TAPER (9.52 DEG INCL ANGLE)	Single Plane
4169-L	HD TIE ROD END, DODGE TIE ROD	1-14 Left Hand UNF Thread	1:8 TAPER (7.125 DEG INCL ANGLE)	Single Plane



Tie Rod End Fitment Table
Fitment	Description	Driver Side Tie Rod End	Driver Side Tie Rod End Boot	Passenger Side Tie Rod End	Passenger Side Tie Rod End Boot
8567-01	03-13 Drag Link	4133-L	4131-01	4160-L	4131-01
8567-02	00-02 Drag Link	4133-L	4131-01	4160-L	4131-01
8567-03	94-99 Drag Link	4136-L	4131-01	4160-L	4131-01
8568-01	03-13 Tie Rod	4134-L	4134-02	4134-L	4134-02
8568-02	00-02 Tie rod	4134-L	4134-02	4134-L	4134-02
8568-03	94-99 Tie Rod	4136-L	4134-02	4136-L	4134-02
8701-01	14+ Drag Link	4160-L	4131-01	4134-L	4131-01
8702-01	14+ Tie Rod	4138-L	4134-02	4138-L	4134-02
