Carli Ford Super Duty 05-16 2.5 Coil Over-Bypass (4.5" Lift) Suspension System

Carli Suspension's Ford Super Duty 2.5 Coilover/Bypass suspension system is intended to be the baddest coilover system available for your Ford Super Duty. Featuring Full Progressive Rear Deaver Leaf Springs, and Front and Rear Bypass Shocks, this system offers all of the fixings!

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

FEATURES

-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Corrosion-Resistant Stainless Shock Shafts
-Tighter street feel Driving Characteristics
-Increased Suspension Response
-Steering geometry is all within OEM specs, no additional components are necessary
-Towing/hauling capacity is the same as OEM, no reduction of capability

WHEEL TRAVEL

-10 Inches of Front Wheel Travel
-12 Inches of Rear Wheel Travel

ALTERED VEHICLE CHARACTERISTICS

-4.5 Inches of Lift on the Front
-2.5 Inches of Lift on the Rear
-Vehicle is "Leveled" from Stock Setup

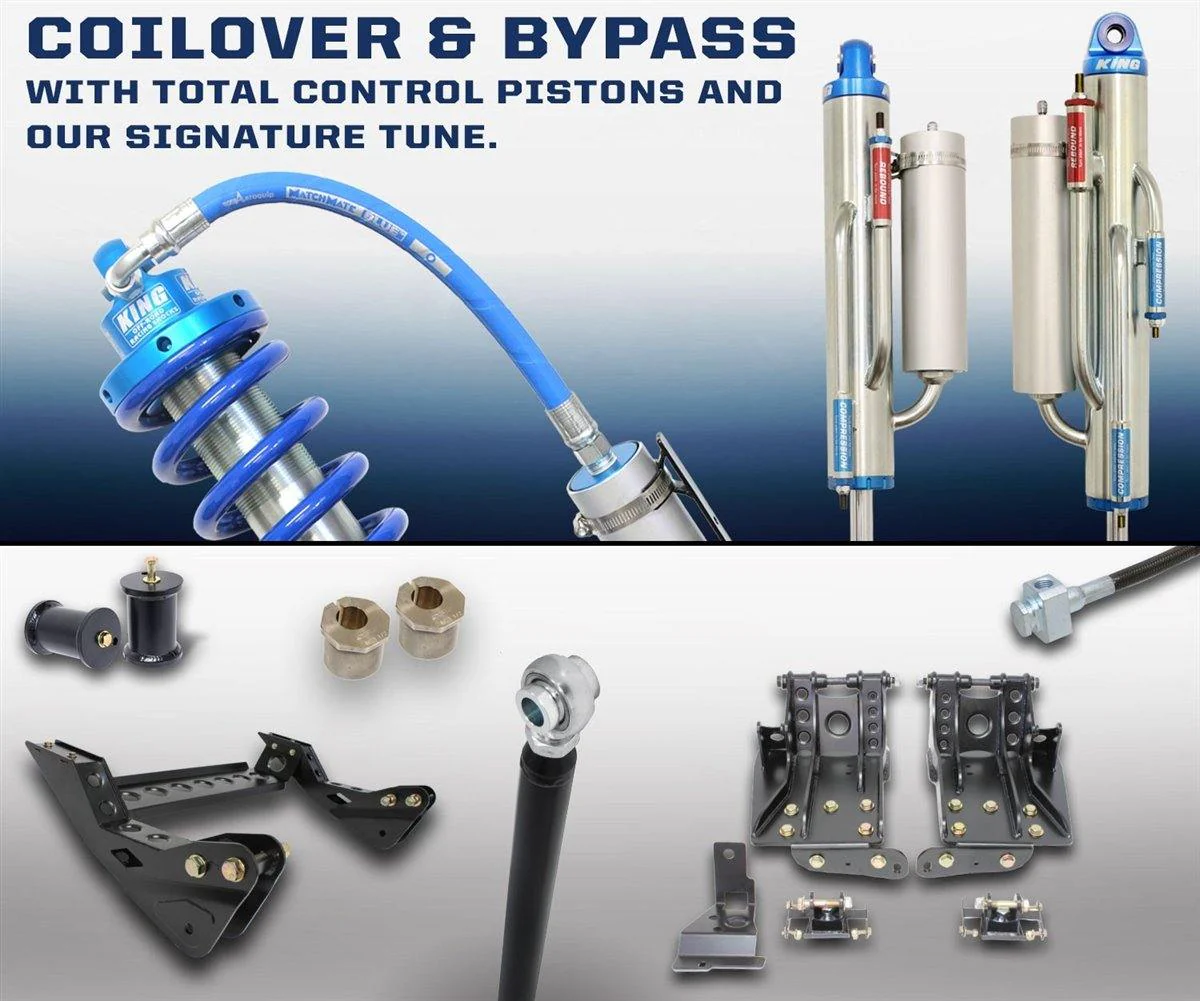

COMPONENTS

-KING 2.5"x10" Custom Front Coil Over Shocks
-KING 2.5" Front Bypass Shocks
-KING 2.5 3-Tube Rear Bypass Shocks with 3.0" Rebound

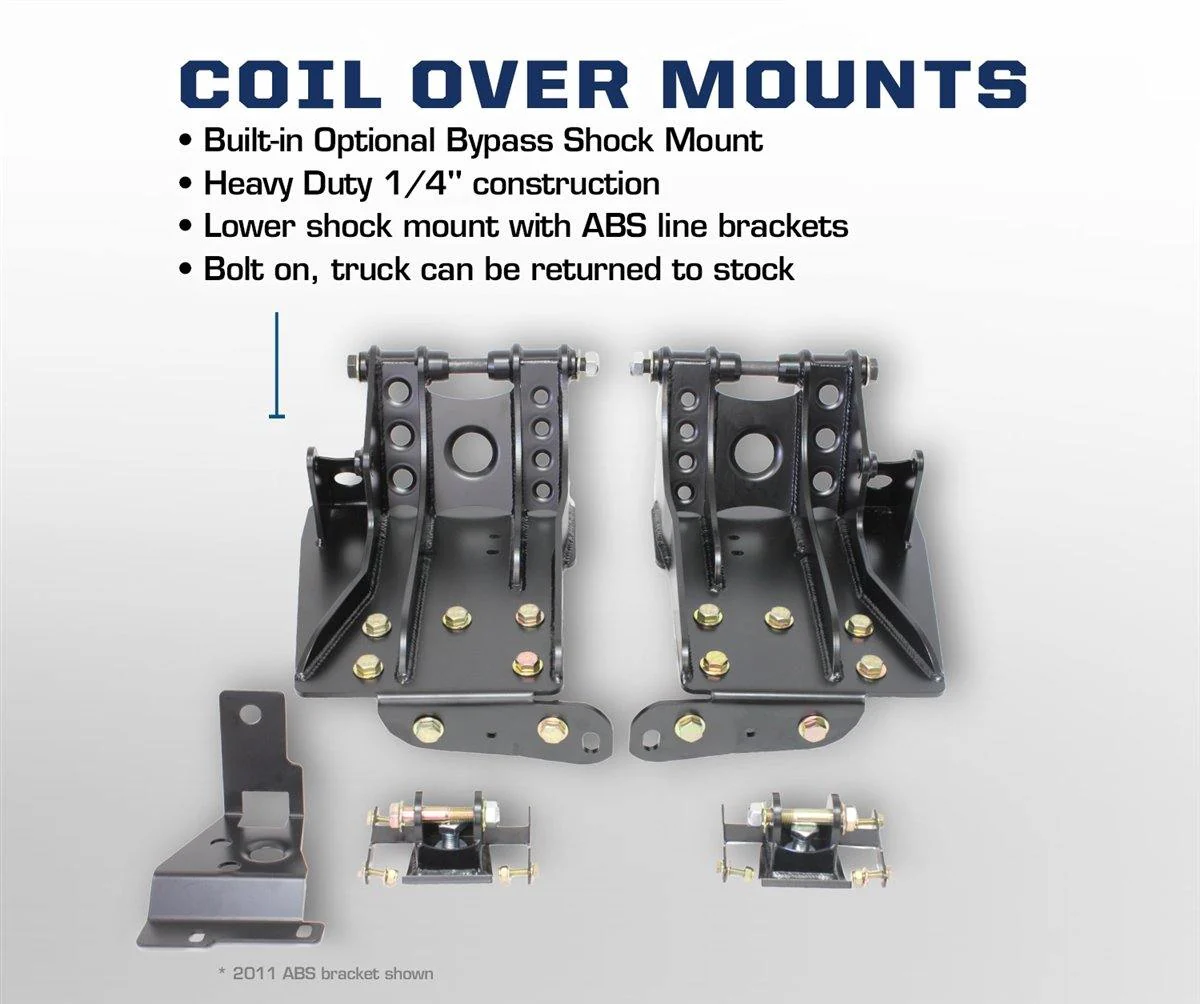

-Coil Over Mounting Kit
-Limit Straps
-Radius Arm Drop Bracket Kit with Dimple Die Cross Member
-Sway Bar End Links
-Adjustable Track Bar
-Full Progressive Deaver Rear Leaf Springs
-Front Bump Stop Drops
-Extended Braided Brake lines

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-F45-CO25-BYP-11
2008-2010 FORD F250 / F350 4x4 CS-F45-CO25-BYP-08
2005-2007 FORD F250 / F350 4x4 CS-F45-CO25-BYP-05

Front Lift	Rear Lift	Front Travel	Rear Travel	Shock Diameter	Tire Fitment
4.5″	0-3.5″	10″	13″	2.5″	37″ x 13.5″
